HDRF-1070-G

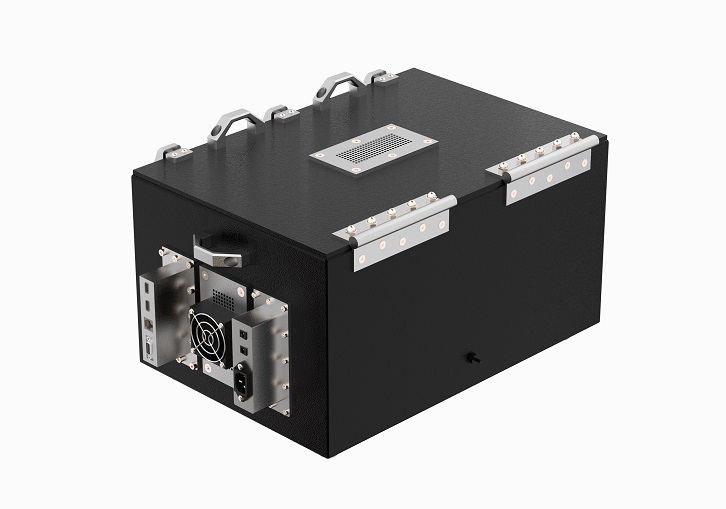

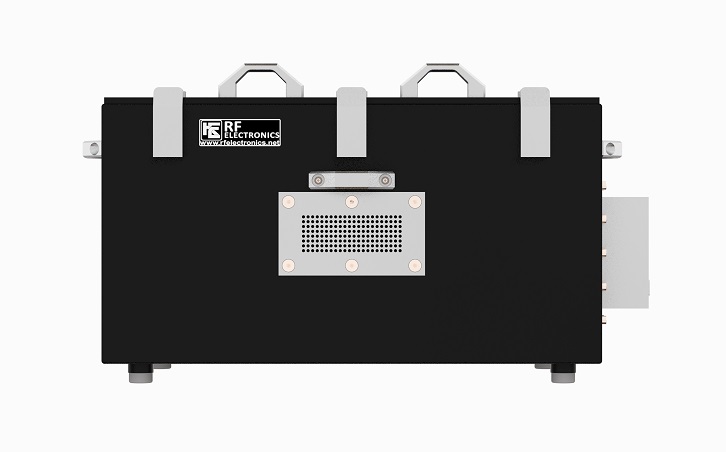

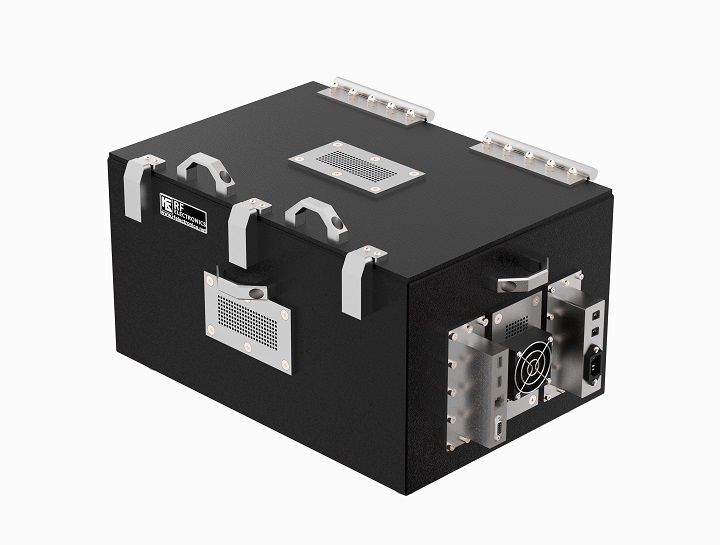

HDRF-1070-G RF Shield Test Box

HDRF-1070-G
HDRF-1070-G
HDRF-1070-G
HDRF-1070-G
HDRF-1070-G
HDRF-1070-G

Want to customize your shield box? Build Your Shieldbox

HDRF-1070-G

HDRF-1070-G RF Shield Test Box

  • Bench-top / Table-Top RF Shield Box.
  • Designed and Developed for WLAN , Wireless device testing.
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, LTE , 5G FR1 Device testing
Internal Dimensions

Internal Dimensions

Width: 393 MM, Height: 194 MM, Depth : 266 MM

External Dimensions

External Dimensions

Width: 480 MM, Height: 250 MM, Depth : 330 MM

Weight

Weight

Net Weight: 11.60 KG, Gross Weight: 16.60 KG

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-1070-G

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, 5G FR1 Device testing

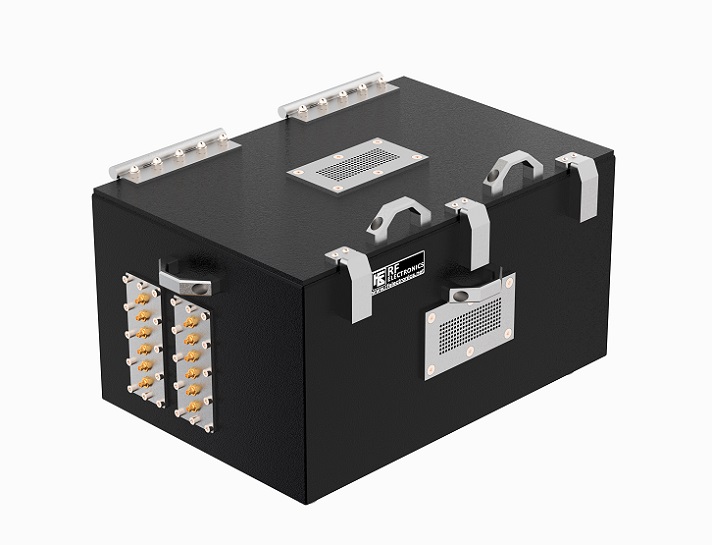

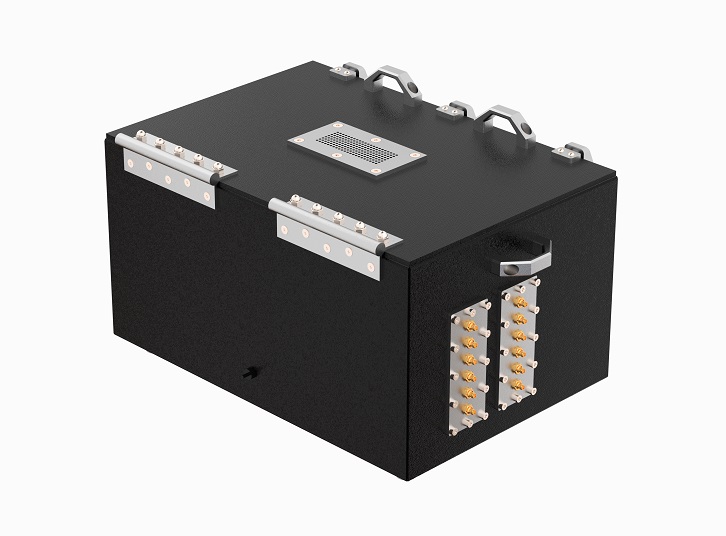

  • Wide range of I/O connector options.

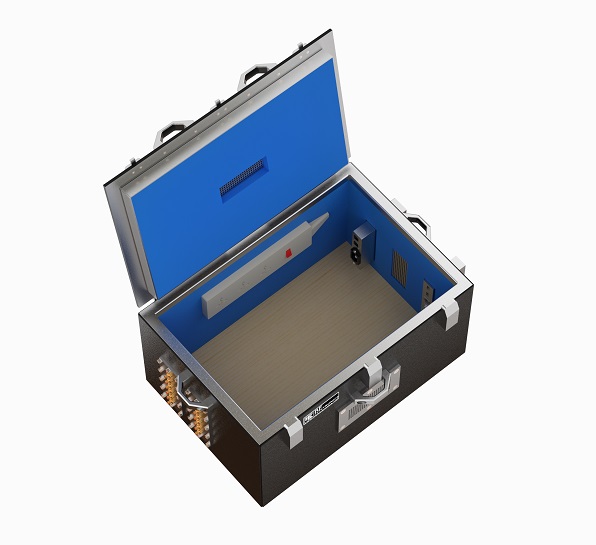

  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 12GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Rugged construction for long life.
  • Table Top design for the convenience of testing.
