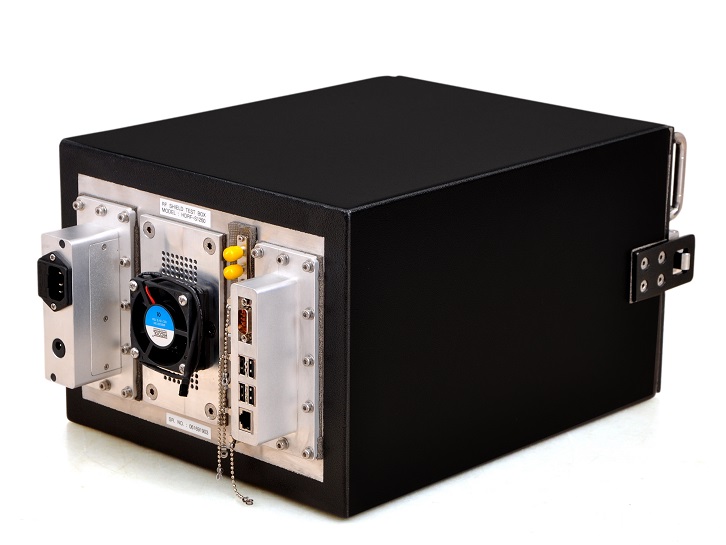

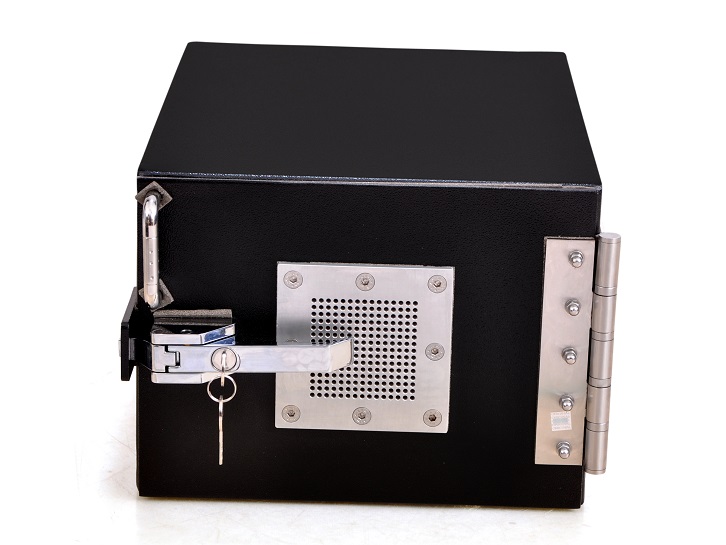

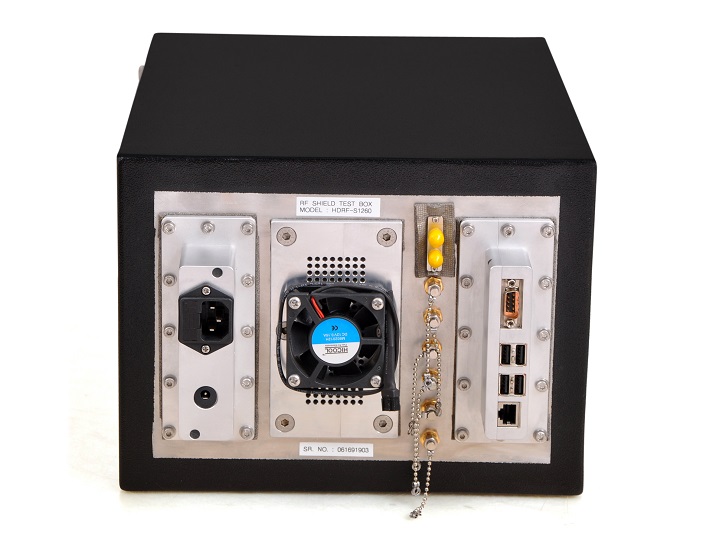

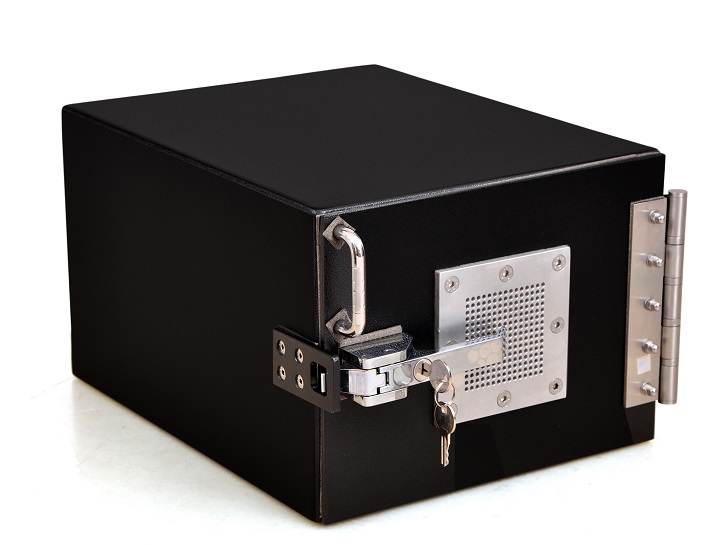

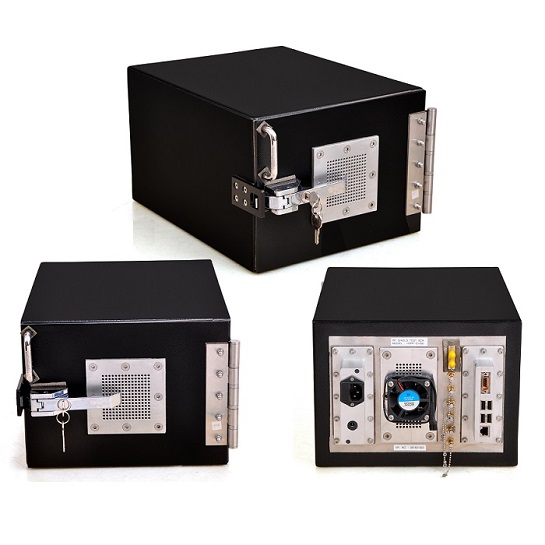

HDRF-S1260 RF Shield Test Box

  • Bench-top / Table-Top RF Shield Box.
  • Designed and Developed for WLAN , Wireless device testing.
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, LTE , 5G Device testing
Internal Dimensions

Internal Dimensions

Width: 260 MM, Height: 200 MM, Depth : 320 MM

External Dimensions

External Dimensions

Width: 290 MM, Height: 217 MM, Depth : 360 MM

Weight

Weight

Net Weight: 7.40 KG, Gross Weight: 12.80 KG

Weight

Packaging Dimensions

Width: 15.50 Inch, Height: 17.50 Inch, Depth: 23.00 Inch

Add Product to Inquiry Add Product to Inquiry

Industries

IoT Device Testing
IoT Device Testing
Telecommunication
Telecommunication
Industrial Automation
Industrial Automation
Automotive
Automotive
Consumer Electronics
Consumer Electronics

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-S1260

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ax,be
  • Bluetooth, RFID, 3G, 5G Device testing
  • Wide range of I/O connector options.
  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 12GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Affordable shielding solution without compromising on quality or performance
  • Compact and portable shield box for easy transportation and setup in various environments
  • Rugged construction for long life.
  • Table Top design for the convenience of testing.
