HDRF-1124-W1

24" Rack Mount RF Shield Test Box

A 24" Rack Mount RF Shield Test Box designed for controlled and repeatable wireless device testing. It provides high RF isolation up to 12 GHz and supports applications including Wi-Fi 6/7/8, Bluetooth, RFID, LTE, 5G, IoT, and other advanced wireless technologies. Its rack-mount design enables easy integration into RF test platforms and laboratory environments.

Internal Dimensions

Width: 503 MM, Height: 243 MM, Depth : 443 MM

External Dimensions

Width: 24 Inch, Height: 7 U, Depth : 560 MM

Weight

Net Weight: 26.00 KG, Gross Weight: 32.00 KG

Packaging Dimensions

Width: 22.00 Inch, Height: 16.00 Inch, Depth: 30.00 Inch

Add Product to Inquiry

Industries

IoT Device Testing

Telecommunication

Industrial Automation

Automotive

Consumer Electronics

RF Isolation

≥ 130 dB @ 20 MHz ~ 1 GHz
≥ 120 dB @ 3 GHz
≥ 120 dB @ 5 GHz
≥ 115 dB @ 6 GHz
≥ 110 dB @ 7 GHz
≥ 110 dB @ 8 GHz
≥100 db @ 12 GHz

V/S

Features of HDRF-1124-W1

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G Device testing
Wide range of I/O connector options.

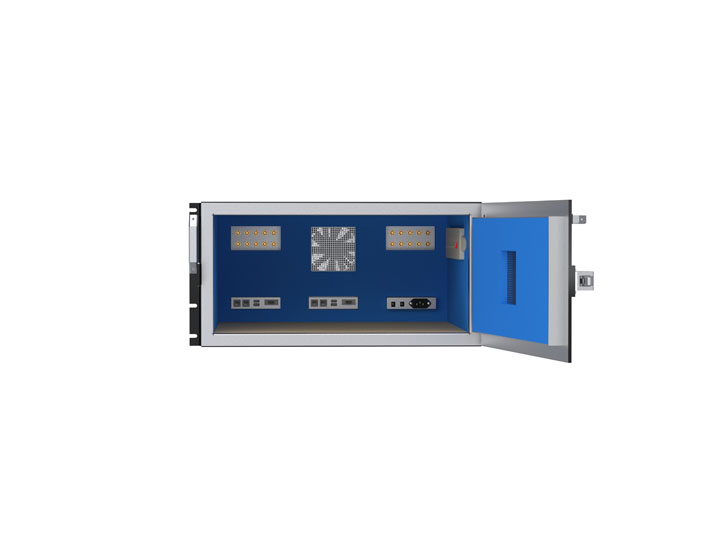

Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Affordable shielding solution without compromising on quality or performance
Compact and portable shield box for easy transportation and setup in various environments
Rugged construction for long life
Standard 24" Rack Mount Design ideal for Rack Based Vertical test platforms.
