HDRF-2860-F RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

Internal Dimensions

Width: 374 MM, Height: 643 MM, Depth : 473 MM

External Dimensions

Width: 19 Inch, Height: 16 U, Depth : 560 MM

Weight

Net Weight: 33.00 KG, Gross Weight: 45.60 KG

Packaging Dimensions

Width: 26.00 Inch, Height: 33.00 Inch, Depth: 36.00 Inch

V/S

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G Device testing

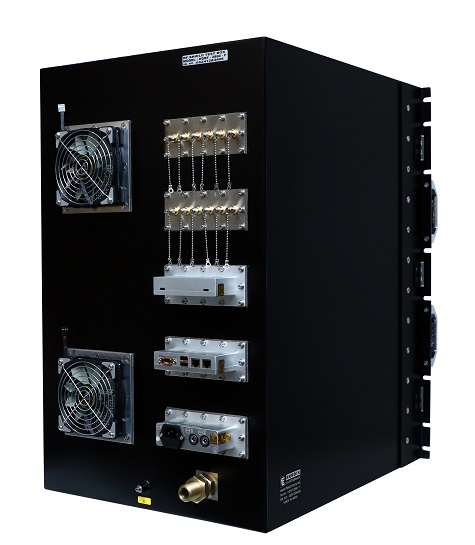

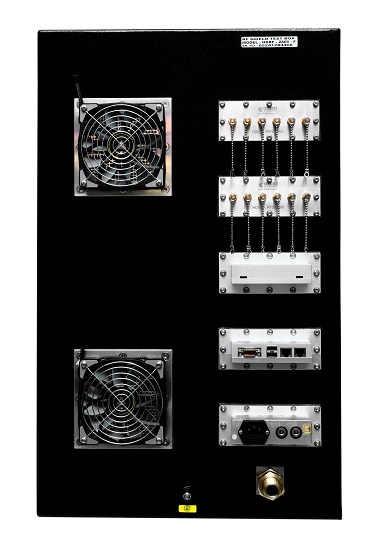

Wide range of I/O connector options.

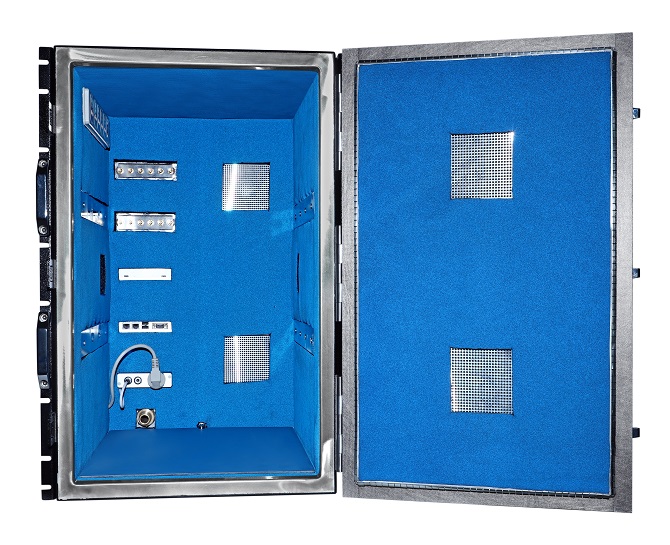

Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Affordable shielding solution without compromising on quality or performance.
Compact and portable shield box for easy transportation and setup in various environments.
Rugged construction for long life
Standard 19" Rack Mount Design ideal for Rack Based Vertical test platforms.
