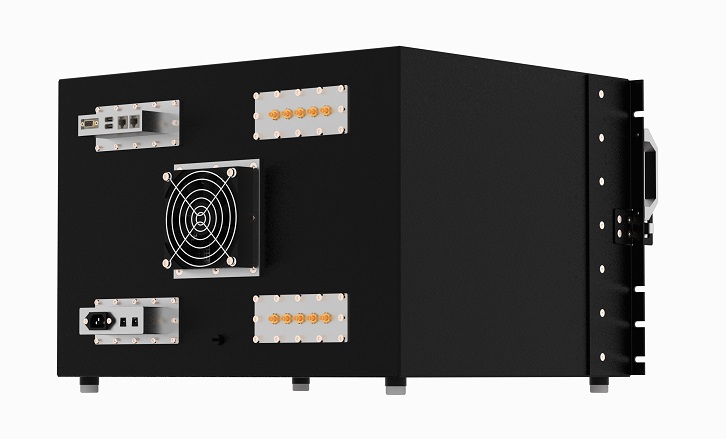

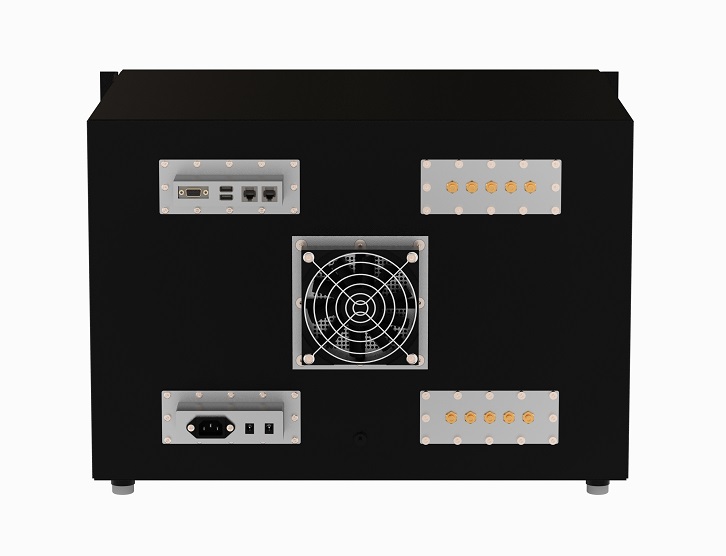

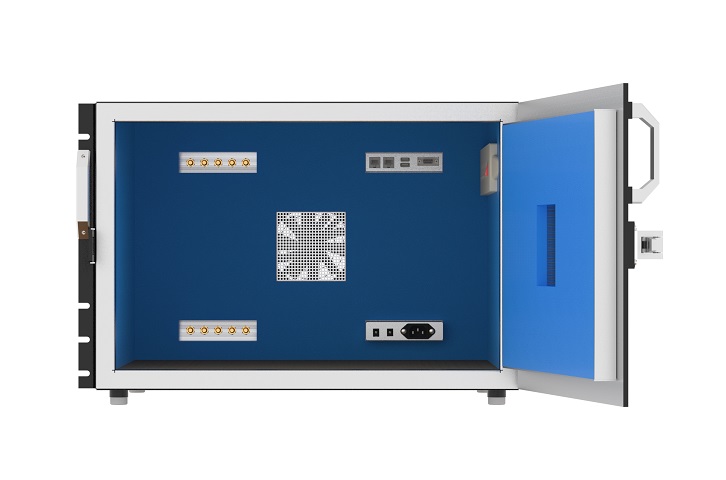

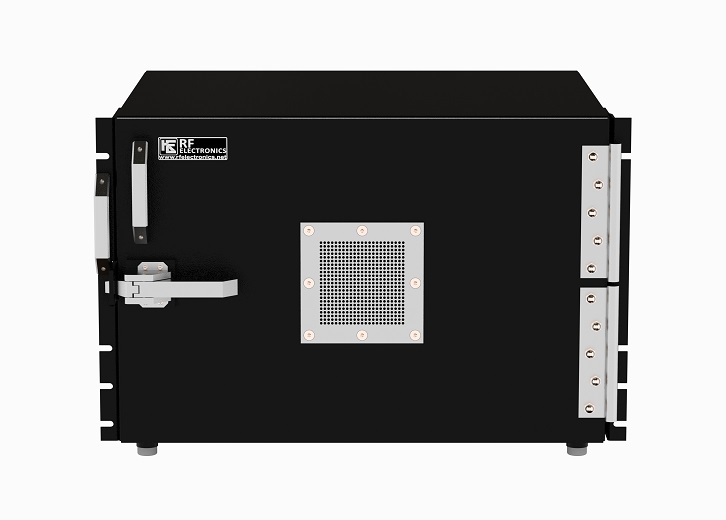

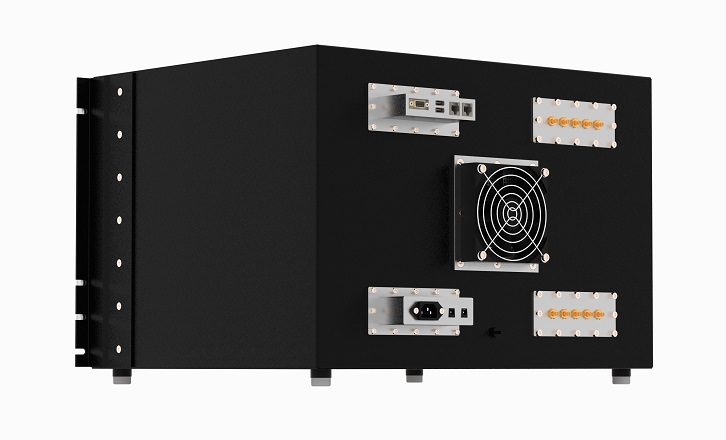

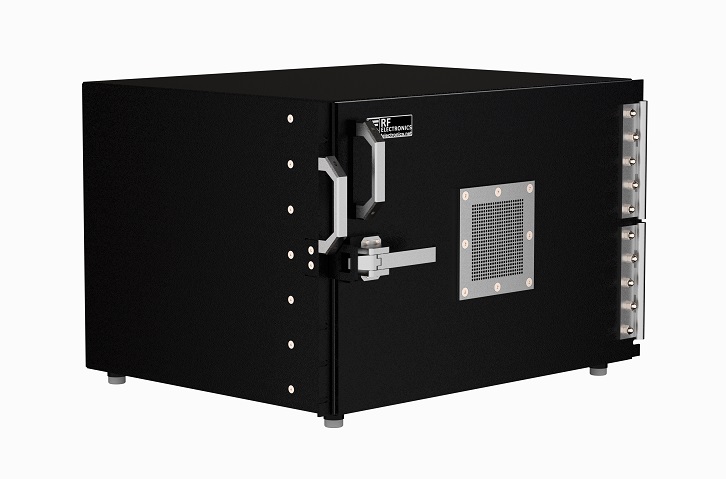

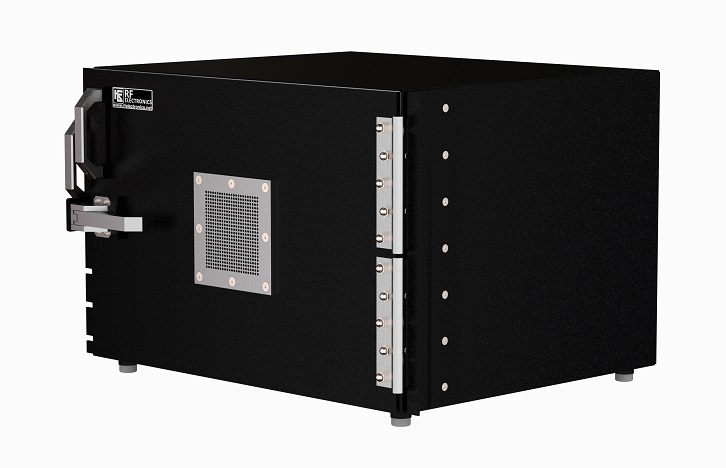

HDRF-2270-F RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

Internal Dimensions

Width: 501 MM, Height: 334 MM, Depth : 383 MM

External Dimensions

Width: 560 MM, Height: 380 MM, Depth : 470 MM

Weight

Net Weight: 22.80 KG, Gross Weight: 28.80 KG

Packaging Dimensions

Width: 26.50 Inch

V/S

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax,be
Bluetooth, RFID, 3G, 5G FR1 Device testing
Wide range of I/O connector options.
Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Affordable shielding solution without compromising on quality or performance.
Compact and portable shield box for easy transportation and setup in various environments.
Rugged construction for long life.
Table Top design for the convenience of testing.
