Rack Mount Shield Box

Find answers to common questions about rack integration, RF shielding performance, connectivity, automation, customization, and selecting the right Rack Mount Shield Box for your test environment.

A Rack Mount RF Shield Box is a shielded enclosure designed to fit standard equipment racks for wireless device testing. It provides a controlled RF environment and integrates easily with test instruments and automated test systems.

Rack-mounted RF testing improves laboratory organization, saves space, and simplifies integration with RF instruments and automation systems. It also enhances testing efficiency, repeatability, and production throughput. Also provides flexibility of transporting complete setup anywhere on the globe.

Yes. They can be integrated with Automated Test Equipment (ATE), robotic systems, PLCs, barcode scanners, and production software for fully automated wireless device testing.

Yes. They can be used for testing of Devices based on Wi-Fi 6/6E/7, future Wi-Fi 8, Bluetooth, RFID, LTE, 5G NR, UWB, GNSS, and other wireless technologies, depending on the application.

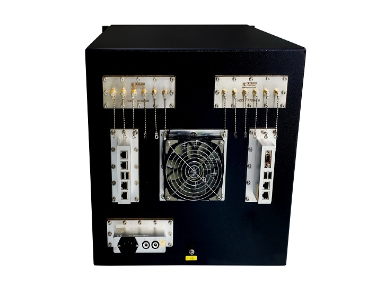

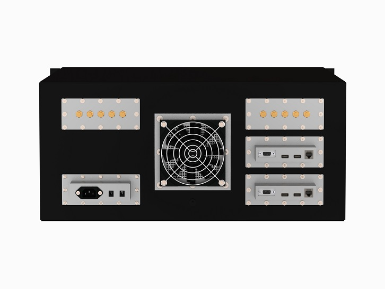

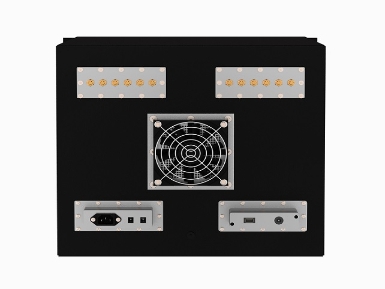

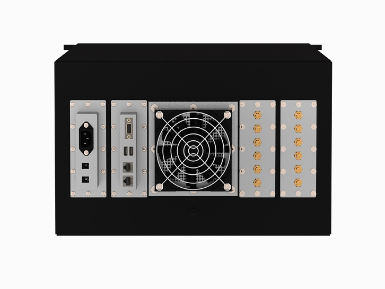

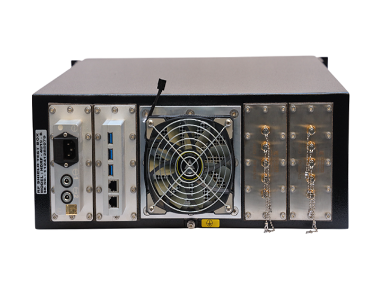

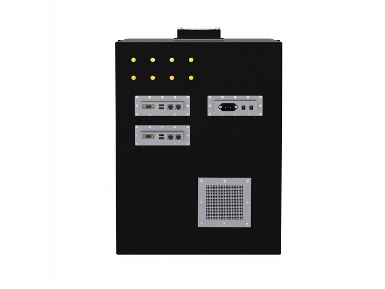

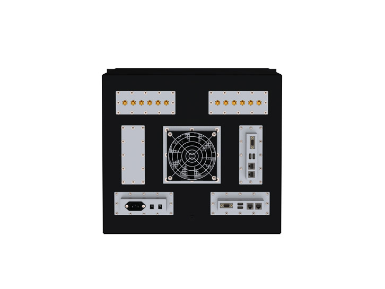

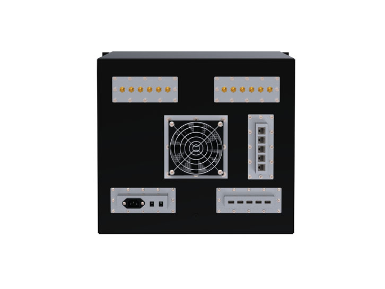

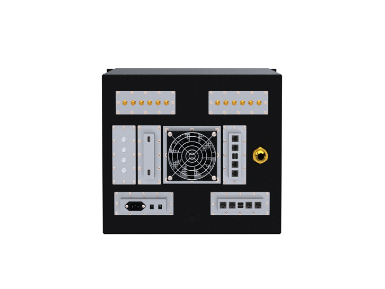

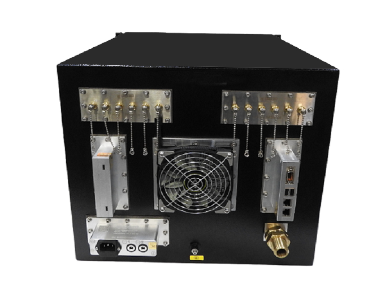

Available interfaces include RF connectors, USB 2.0 , USB 3.0 , USB Type-C, 10G Ethernet, HDMI, Fiber Optic, AC/DC Power, Audio, SMA RF Port , N-Type RF Port , F-Type RF , 1.85mm RF Port , 2.4mm RF Port , 2.92mm RF Port Port and custom I/O panels. Connector configurations can be customized to meet your testing requirements.

Depending on the model and frequency range, RF Electronics Rack Mount Shield Boxes typically provide shielding effectiveness from 100 dB to 130 dB. The appropriate isolation level is selected based on your testing application.

Yes. They are widely used for automated and manual production testing, device validation, calibration, and end-of-line quality inspection in high-volume manufacturing environments.

Absolutely. Rack size, enclosure dimensions, I/O interfaces, antenna layouts, cooling options, and automation features can all be customized to suit your application.
