HDRF-1124-P

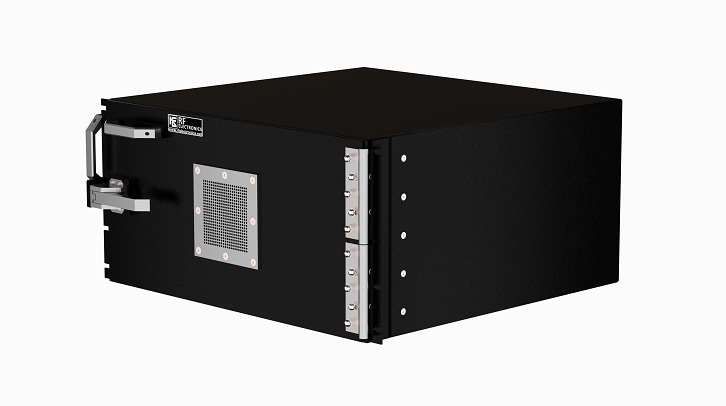

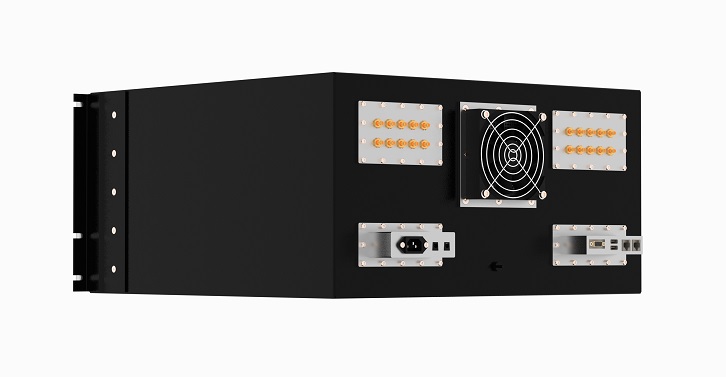

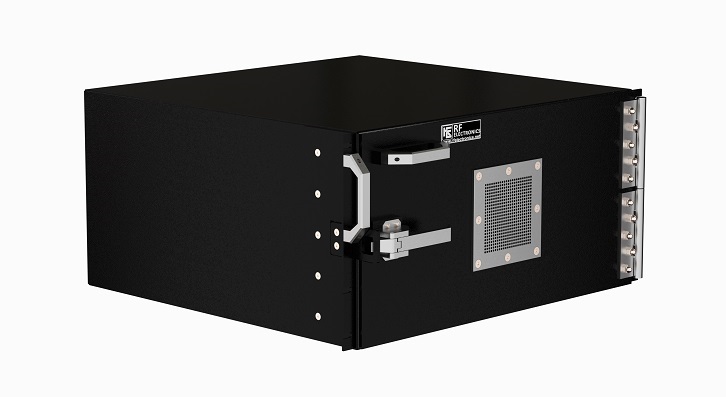

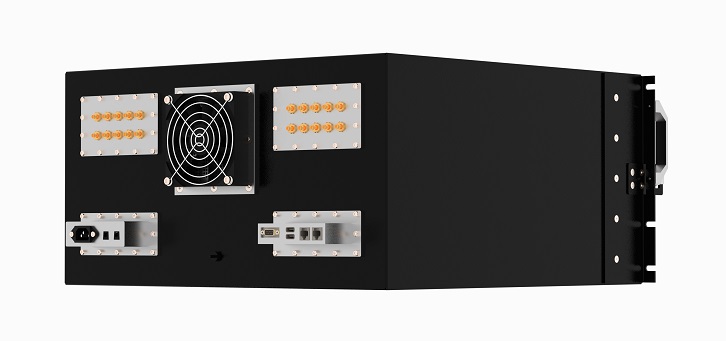

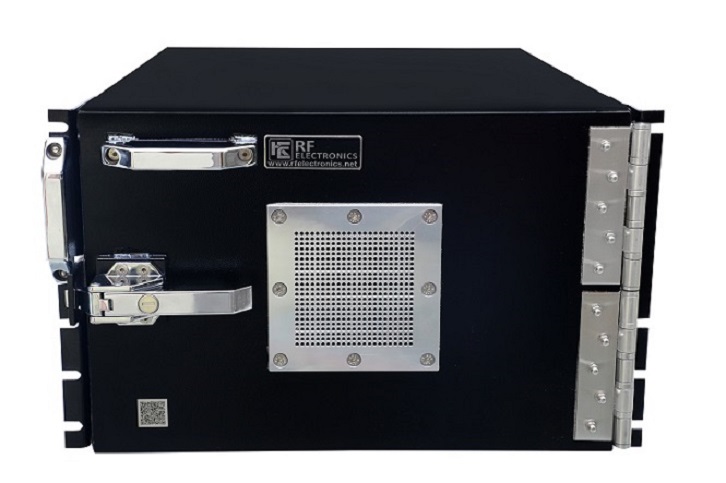

HDRF-1124-P RF Shield Test Box

  • 24" Rack Mount RF Shield Box.
  • Designed and Developed for WLAN , Wireless device testing.
  • Ideal for 802.11a, b, g, n, ac, ax, be
  • Bluetooth, RFID, 3G, LTE , 5G Device testing

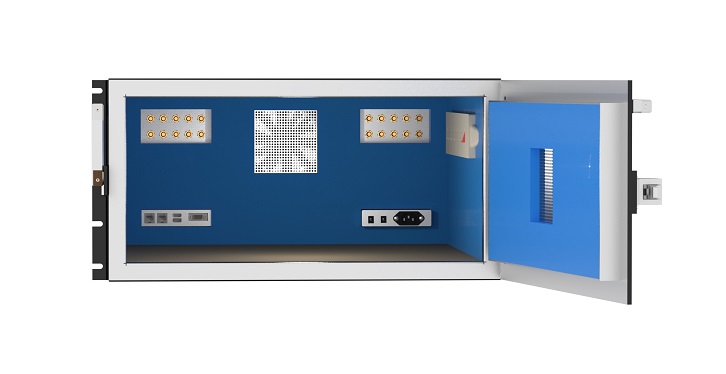

Internal Dimensions

Internal Dimensions

Width: 501 MM, Height: 234 MM, Depth : 473 MM

External Dimensions

External Dimensions

Width: 24 Inch, Height: 7 U, Depth : 560 MM

RF Isolation

  • ≥ 130 dB @ 20 MHz ~ 1 GHz
  • ≥ 120 dB @ 3 GHz
  • ≥ 120 dB @ 5 GHz
  • ≥ 115 dB @ 6 GHz
  • ≥ 110 dB @ 7 GHz
  • ≥ 110 dB @ 8 GHz
  • ≥100 db @ 12 GHz
V/S
RF Isolation
Competition Isolation

Features of HDRF-1124-P

  • Designed and Developed for WLAN , Wireless device testing
  • Ideal for 802.11a, b, g, n, ac, ax, be
  • Bluetooth, RFID, 3G, 5G Device testing

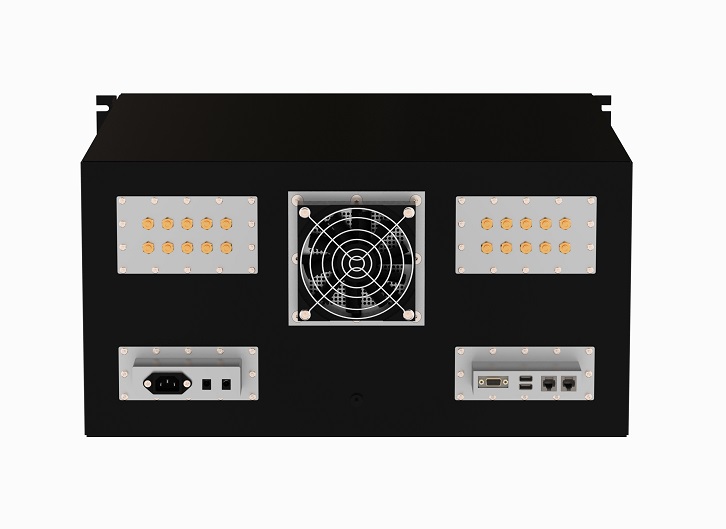

  • Wide range of I/O connector options.
  • Thick RF absorbing foam deadens standing waves and reflections.
  • Higher Level Isolation up-to 12GHz for accurate performance.
  • Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
  • Affordable shielding solution without compromising on quality or performance
  • Compact and portable shield box for easy transportation and setup in various environments
  • Rugged construction for long life
  • Standard 24" Rack Mount Design ideal for Rack Based Vertical test platforms.
