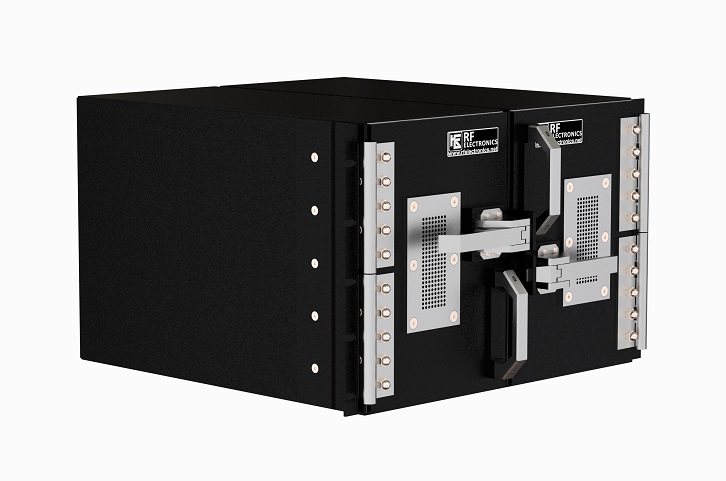

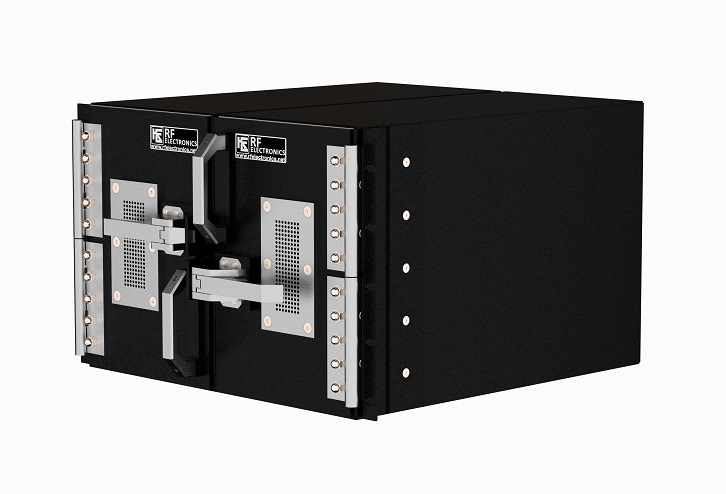

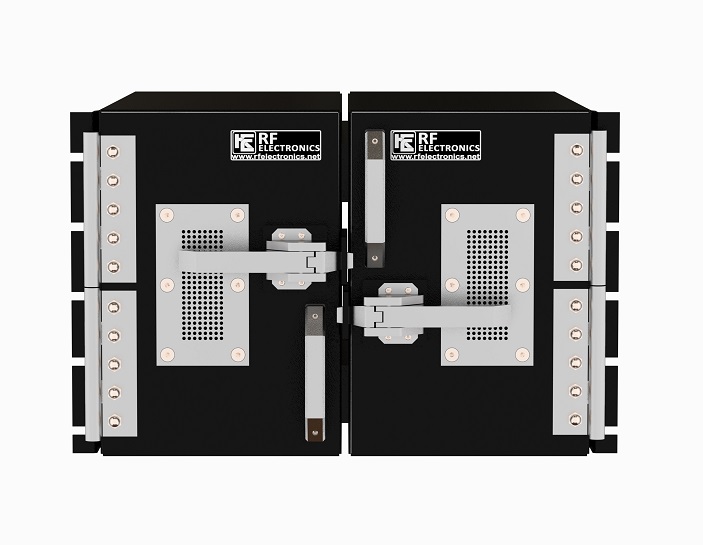

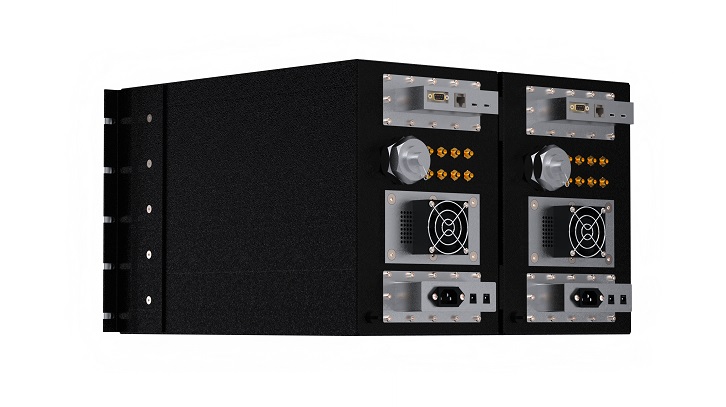

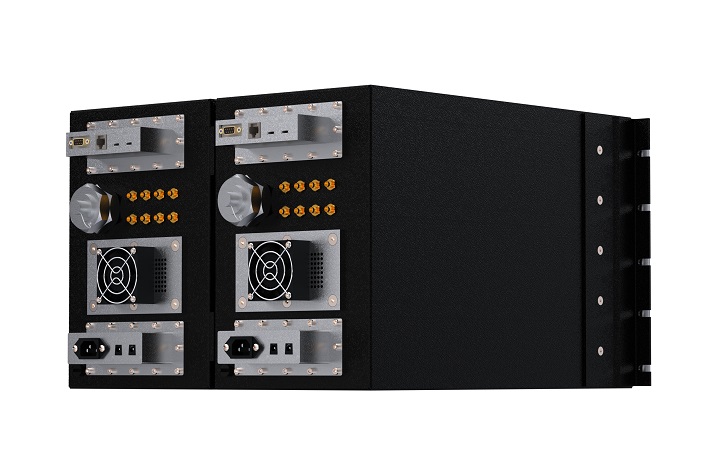

HDRF-D1260-Y RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

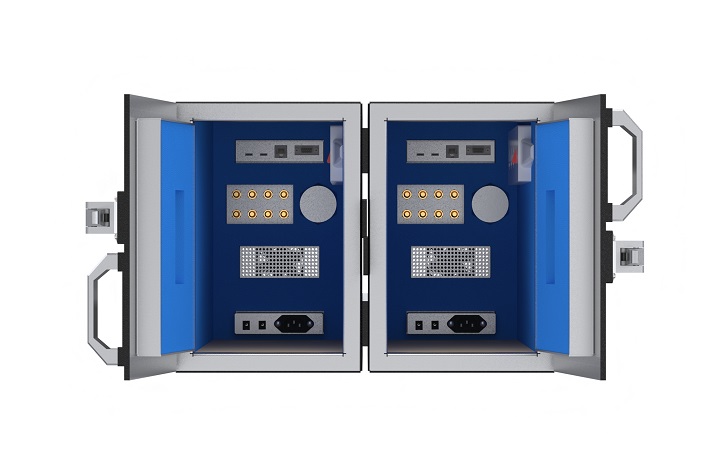

Internal Dimensions

Width: 373 MM, Height: 166 MM, Depth : 258 MM

External Dimensions

Width: 19 Inch, Height: 7 U, Depth : 460 MM

Weight

Net Weight: 18.70 KG, Gross Weight: 23.00 KG

V/S

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G FR1 Device testing
Wide range of I/O connector options.
Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Rugged construction for long life
Standard 19" Rack Mount Design ideal for Rack Based Vertical test platforms.
