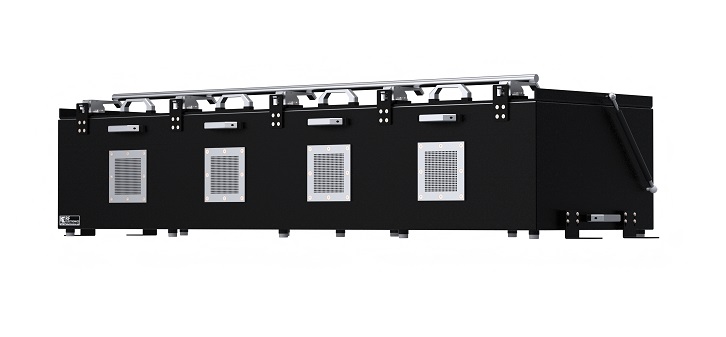

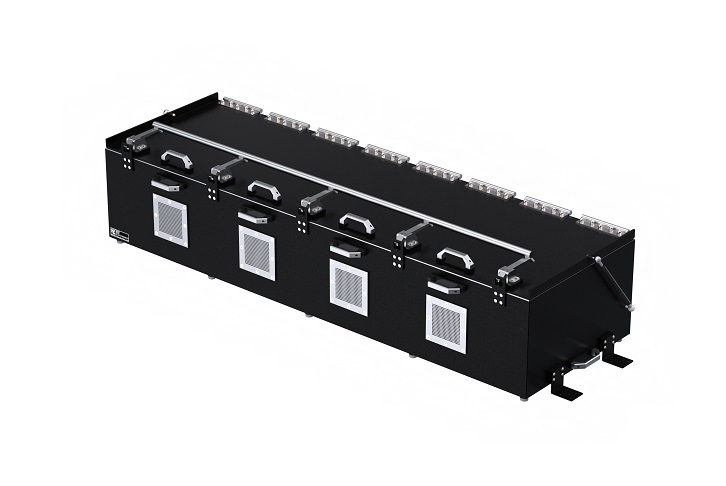

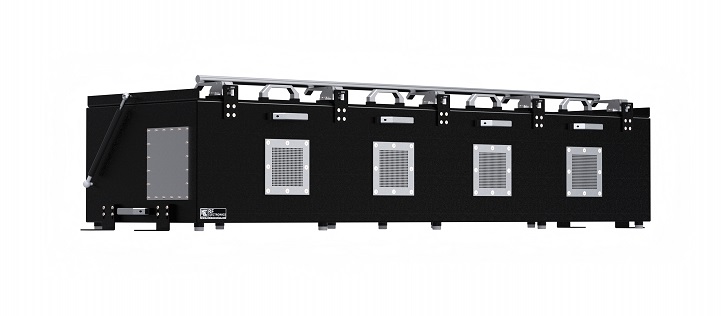

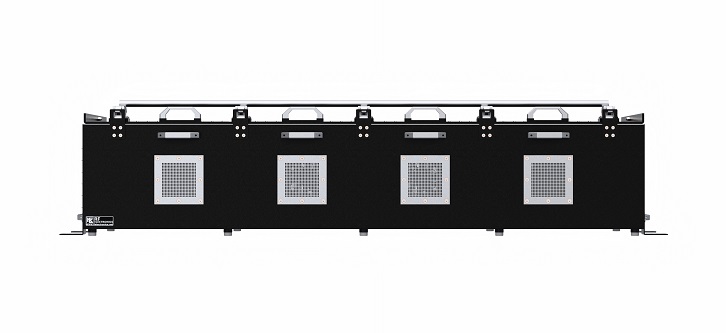

HDRF-552012 RF Shield Test Box

Want to customize your shield box? Build Your Shieldbox

Internal Dimensions

Width: 1546 MM, Height: 234 MM, Depth : 446 MM

External Dimensions

Width: 1600 MM, Height: 300 MM, Depth : 500 MM

V/S

Designed and Developed for WLAN , Wireless device testing
Ideal for 802.11a, b, g, n, ac, ax, be
Bluetooth, RFID, 3G, 5G Device testing
Wide range of I/O connector options.

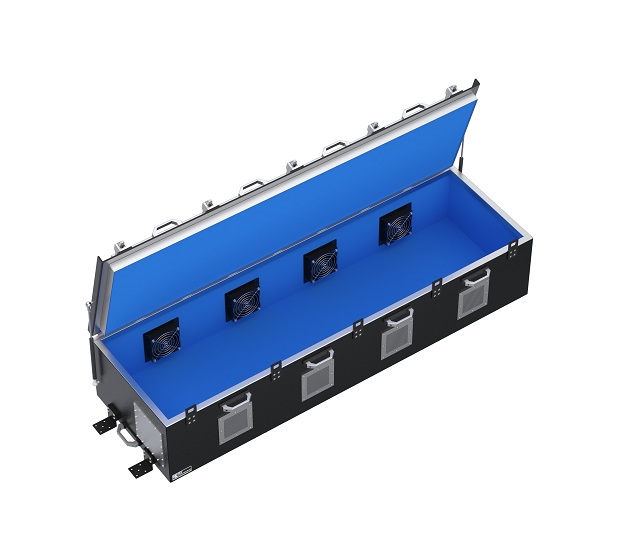

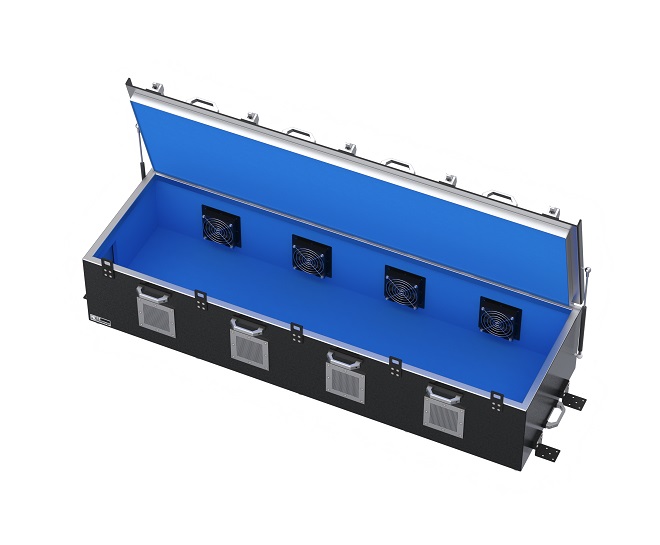

Thick RF absorbing foam deadens standing waves and reflections.
Higher Level Isolation up-to 12GHz for accurate performance.
Equipped with shielded power filters for power connection in the box while still blocking all wireless signals.
Rugged construction for long life.
Table Top design for the convenience of testing.
